Control panel wire harness

QL-Custom delivers custom wiring harnesses, pigtails, and components for OEMs with 100% quality assurance and 96% on-time delivery. Our automotive harnesses are built to original specs with full design support and strict quality control.

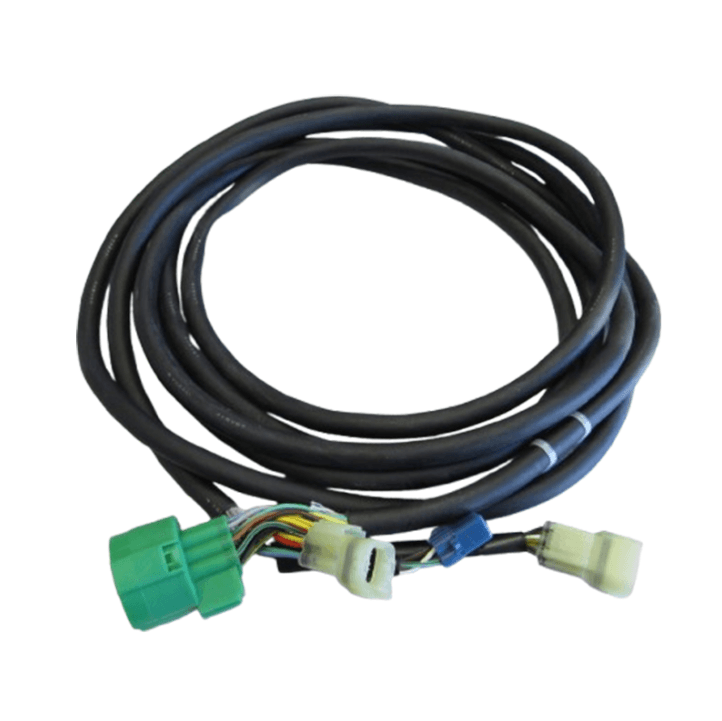

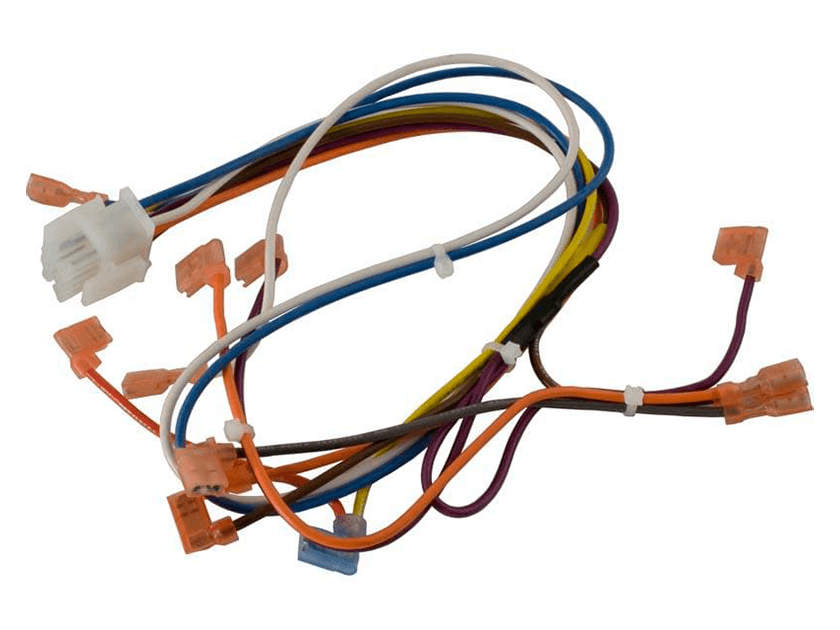

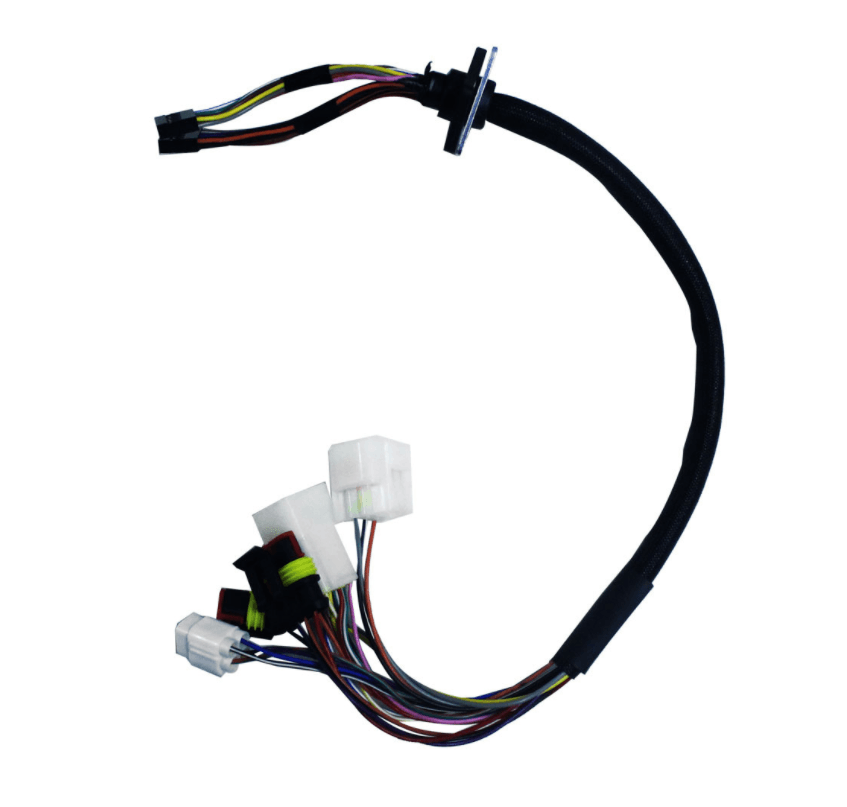

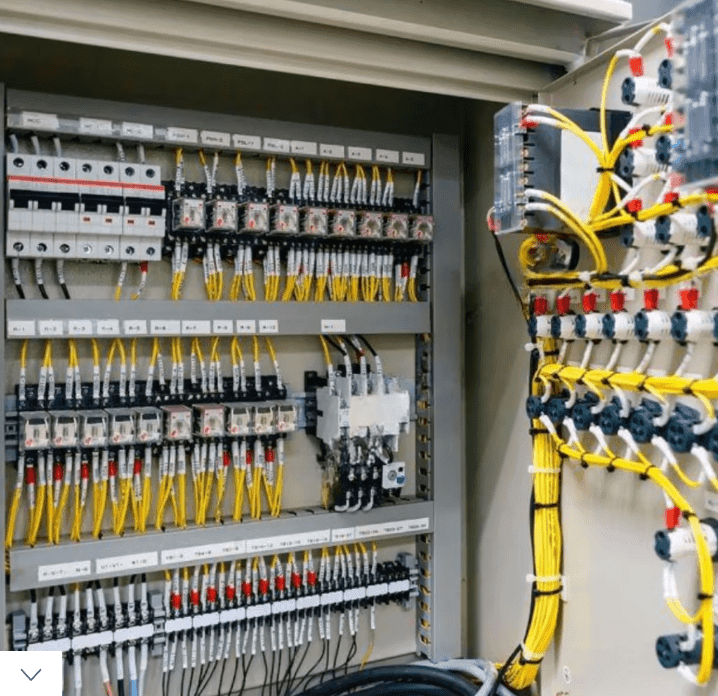

A control panel wire harness is a bundle of wires tied together neatly and safely. These wires carry power and signals from one part of a machine to another. You can think of it like a set of veins for machines, helping them send energy and messages where they need to go. Depending on their use, these harnesses can be short or long, thin or thick. They are made to keep the wires tidy and to make fixing or checking the machine much easier. You can find these harnesses inside houses, cars, significant buildings, factory machines, and many tools used daily.

At QL-Custom Technology Ltd., we proudly make control panel wire harnesses that are very strong, safe to use, and simple for everyone to set up. These harnesses are used in control panels and many types of machines. A control panel wire harness is a group of wires in one clean bundle. It helps make wiring much easier, faster, and neater. Whether you need a simple group of wires or a special setup with plugs, sensors, and labels, we can build it just for you. Our team designs each harness to fit your machine, last a long time, and work safely daily. We also reply fast, give you clear answers, and share price quotes quickly to help you move forward without delay.

Why Choose Our Control Panel Wire Harness?

Tailor-Made Design

We make every control panel wire harness based on what you need. That means we choose the right length of wires, the correct thickness, and the right type of connectors. When the harness is made to match your control panel, it will fit better and work better. This also helps you avoid problems during setup and reduces the chance of any mistakes.

Certified Quality

Our harnesses are built in clean, safe factories that follow stringent safety rules. We follow rules like ISO 9001 and UL 508A. Before we send any harness out, we test all the parts, wires, and connectors. This helps you know the harness is safe, strong, and ready to use.

Fast Turnaround

We understand your time is crucial. That’s why we try to move fast. We can send test samples quickly, and our team is always ready to answer your questions. If you have a short deadline, we can speed things up to help you stay on track.

Our Custom Cable Solutions

Customized Wire and Cable Services

We can build many types of harnesses. Some are small and simple, and some are big and complex. No matter what size or shape you need, we use high-quality wires and safe connectors. Every harness is made to match your job.

OEM Cable Manufacturing

If your company builds machines, we can take care of everything. QL-Custom Technology Ltd., is the exact OEM Cable Harness Manufacturer for you. We buy the parts, make the harness, and test it thoroughly. You don’t need to work with many different OEM Cable Harness Manufacturers. We do it all, so your process is simple and easy.

Rapid Prototyping and Design

We use special design tools like CAD software to help plan your harness. We can also make a small sample quickly. You can test it before you order more. This enables you to make sure it fits and works just right.

Technical Details We Follow

Gauge Range

Wires can be very thin (18 gauge) or thick (10 gauge), depending on the need.

Current Capacity

The harness can carry between 15 and 30 amps of current

Temperature Range

Can be used in places as cold as -40°C or as hot as +125°C

Connector

Connectors like crimp or push-lock are used; UL-approved plugs are common

Voltage Rating

The wires can handle between 300 and 600 volts of electricity

Insulation Types

Wires are safely covered using PVC, XLPE, PTFE, or Teflon

Shielding

Special layers are added to stop signal noise and keep the wires clean

Certifications

Standards like UL 508A, RoHS, CE, ISO 9001, UL 94V-0 are followed

Ingress Protection

Rated IP67 or IP68 to stop water and dirt from getting inside

Uses of Control Panel Wire Harnesses

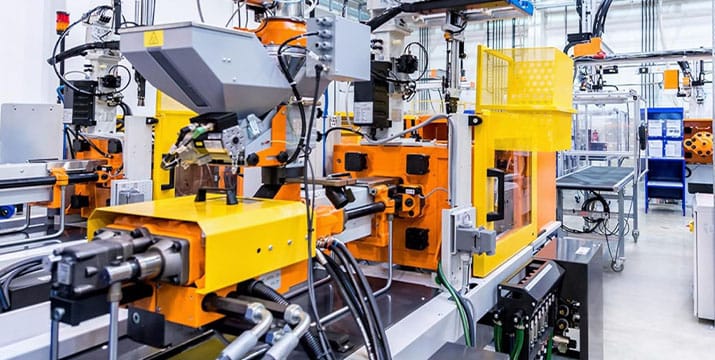

Industrial Machinery

Machines in large factories need harnesses to work correctly. These harnesses connect power, control buttons, motors, and sensors. For example, a robot arm on a factory floor cannot move correctly without a control panel wire harness. Industrial Control Wiring Solutions send signals and energy that make the arm move safely and do its job right.

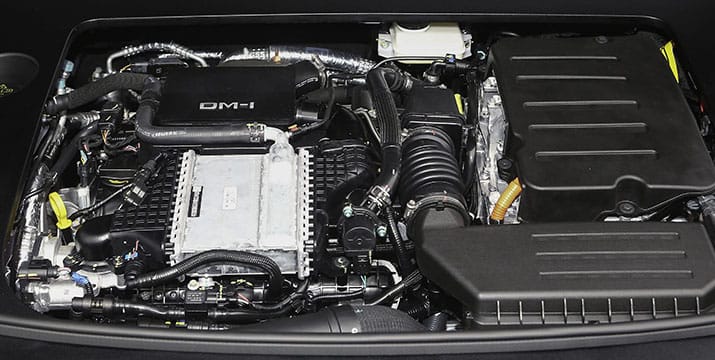

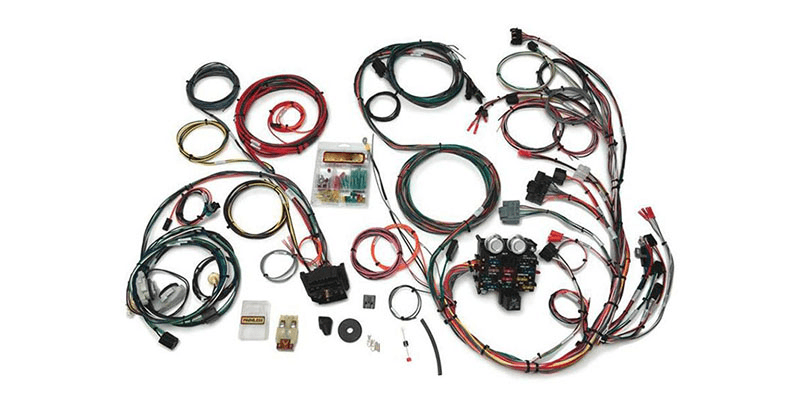

Automotive

Cars and buses, especially electric ones, need strong and flexible Custom Electrical Wiring Harnesses. These Custom electrical wiring harnesses help the vehicle’s wires stay in place while it moves over bumps. They also connect headlights, dashboards, and charging systems, so everything works properly.

HVAC

Building heating and cooling systems use control panel wire harnesses to link different parts, like thermostats, fans, and control units. Harnesses make these systems easier to set up and fix. You’ll see them in homes, shops, hospitals, malls, etc.

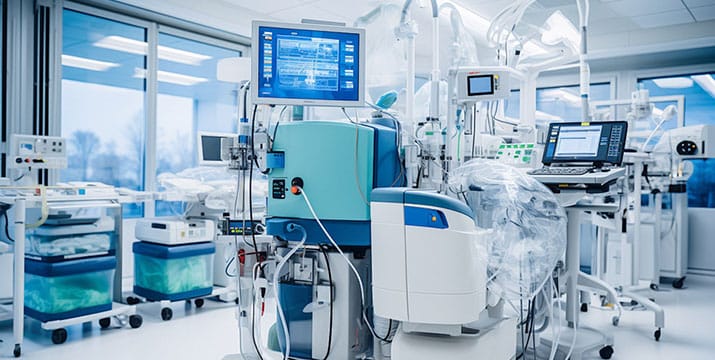

Medical

Medical tools in hospitals and even devices at home use harnesses to stay safe and work well. These harnesses follow strict rules to protect people from harm. Things like lab machines, hospital beds, or home monitors use them.

Important Safety Standards

Important Rules

UL 508A and NFPA 79

These rules explain how to make control panel wire harnesses safe for factory machines. They say the wires must be copper, grounded well, and designed with clear plans.

CE and RoHS

To sell harnesses in Europe, they must follow CE and RoHS rules. These help protect users and the environment by ensuring the harness has no dangerous materials.

ISO 9001 (Global Quality Standard)

This shows the harness maker builds every product in the same high-quality way. It’s essential for industries like cars, planes, and heavy machinery.

Strong and Tough Ratings

Harnesses must survive water, heat, cold, and dust. Ratings like IP67 and IP68 prove they can. Some also need to pass fire safety rules and military-grade toughness.

Other Useful Standards

There are more rules, like UL 758 and IEC 61076. A good maker will know all these and use them as needed.

Custom Solutions for Every Application

Custom Design Services

We work closely with you to make sure every harness fits your system. We use your plans or drawings to create a design that matches exactly. Then we tested it, so it worked well from the start.

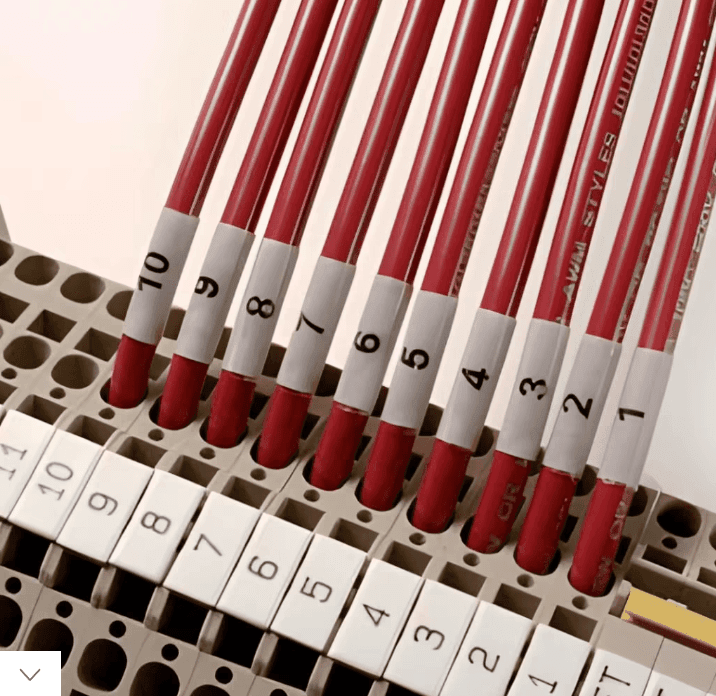

Labeling & Identification

Every wire is clearly labelled. We also use colour codes that follow standard rules. This makes it easy to know where each wire goes. It helps during setup and makes fixing things easier later.

Control Panel Cable Assembly Int.

When it arrives, we can build your Control Panel Cable Assembly harness so that it is already inside your panel. Or we can shape it to fit your panel perfectly so your team can install it fast. This saves a lot of time and effort.

Connector Matching

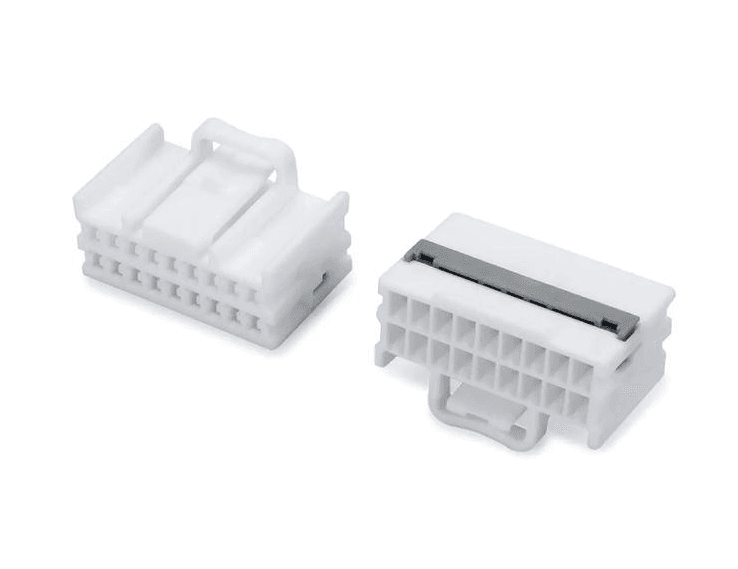

We have many kinds of connectors, like Molex and JST. We can use the same type you already use or help you choose a new one that fits the same way. All connectors are safe and tested.

Recommended Components & Materials

Component

What It Does

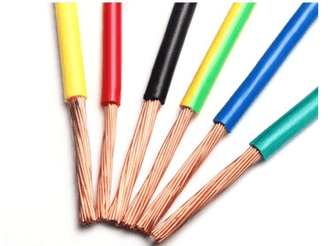

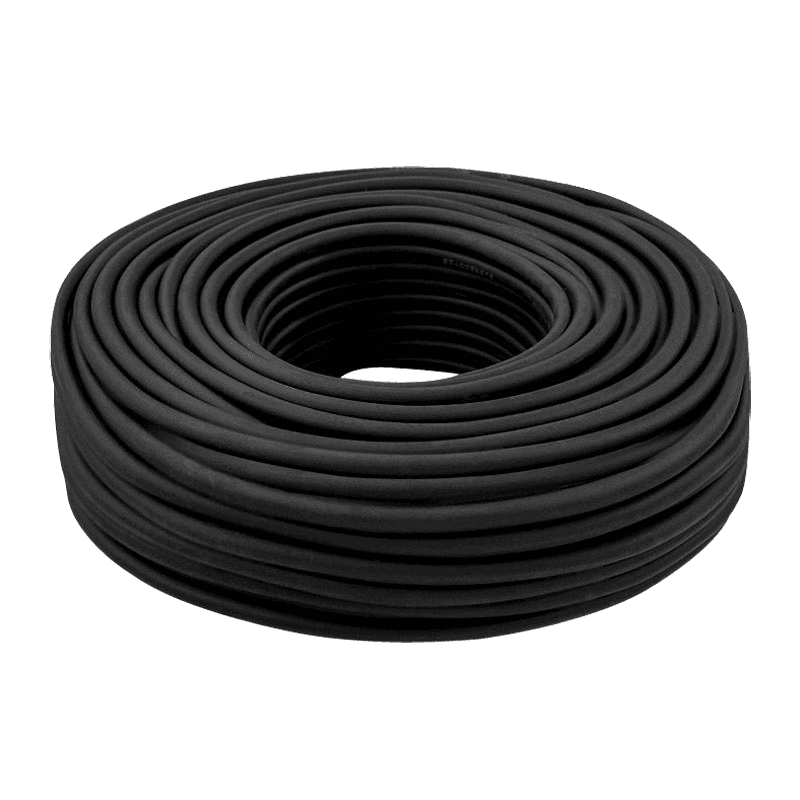

Electronic Cable

Copper wire with plastic coating to carry power or signals safely. These are vital for transferring power and signals. These Electronic Cables are used in many places to run the systems smoothly.

Terminal Ends

Metal pieces that connect to the wire ends to hold them in place. It connects all the wires into a single piece to flow the electricity and signal strongly.

PVC Tubing

Soft plastic that wraps wires to stop damage from bending or rubbing. It is vital for wires, it protects the wire against the weather and makes the wire last a long time.

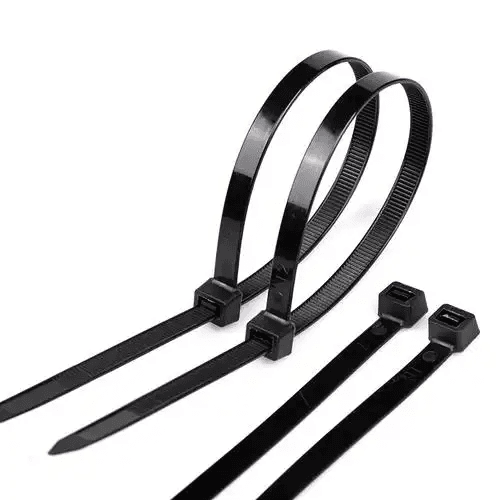

Cable Ties

Small straps that keep wires neat and hold them together. It keeps the wires in an exact spot. It is vital to keep the wires clean and avoid accidents.

Waterproof Connectors

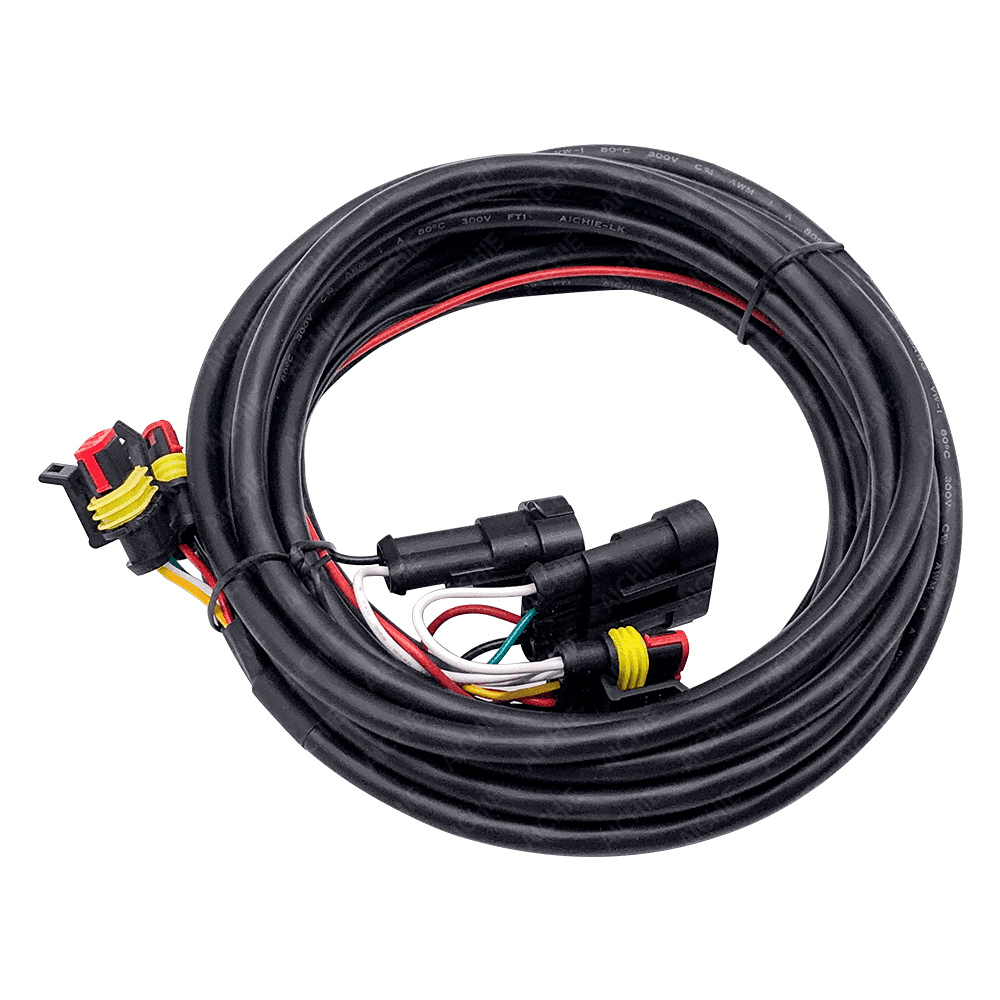

Special plugs that keep water and dirt out – suitable for outdoor use. Because of this product wires last for a long time and work better.

Heat Shrink Sleeves

Plastic that shrinks with heat to protect and seal wire connections. It takes the shape of the wire and protects it from outer odds. It creates an extra protection layer for the wires

Electronic wire

Insulation sheath

Connectors

Strip rolling

Ensure Custom Wire Harness for Control Panel Order

Do you have a precise drawing or layout of your control panel?

Have you decided what wire lengths and types you need?

Do you know what connectors (like Molex or JST) your system uses?

Do you need special labels or colour coding on your wires?

Will your harness need to be pre-installed or shaped to fit your panel?

Do you want a sample first before full production?

Are you aware of any industry certifications your harness must follow (like UL 508A)?

Do you need waterproof parts or outdoor-ready protection?
