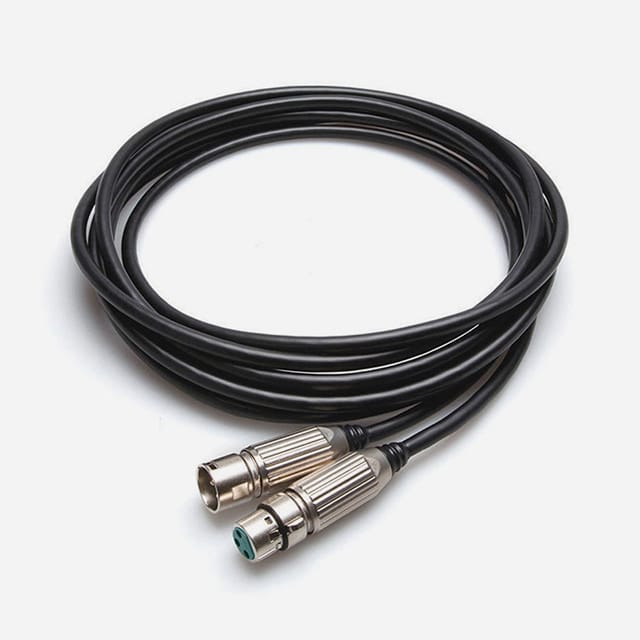

Switchcraft cable assembly

Switchcraft Cable Assembly transfers the exact power and signals to ensure the device produces the best outcome. It is designed and manufactured with top grade materials for high reliability.

Get a Quick Quote

Switchcraft Connector Brand

Switchcraft is an American connector maker founded in Chicago in 1946. For parts in sound, video, and power systems this brand is in the top position for supplying reliable products. Studios, stages, and broadcast trucks use the products of this brand to get the best outcomes. Its Q-G latching connectors set a high bar for audio links. Its Tini-Q-G mini connectors fit small spaces where a full-size plug cannot go. They also make DC power plugs, phone plugs, RCA parts, and patch panels. Through its Conxall and EN3 lines, it offers sealed circular connectors for rugged, outdoor, and medical use. Engineers choose Switchcraft because the parts mate cleanly and hold up after thousands of cycles. At QL-Custom, we build that same trust into every Switchcraft cable assembly we ship. We match the connector to the cable, load, and workspace so the finished part fits your system from day one.

Get a Quick Quote

Switchcraft Connector types

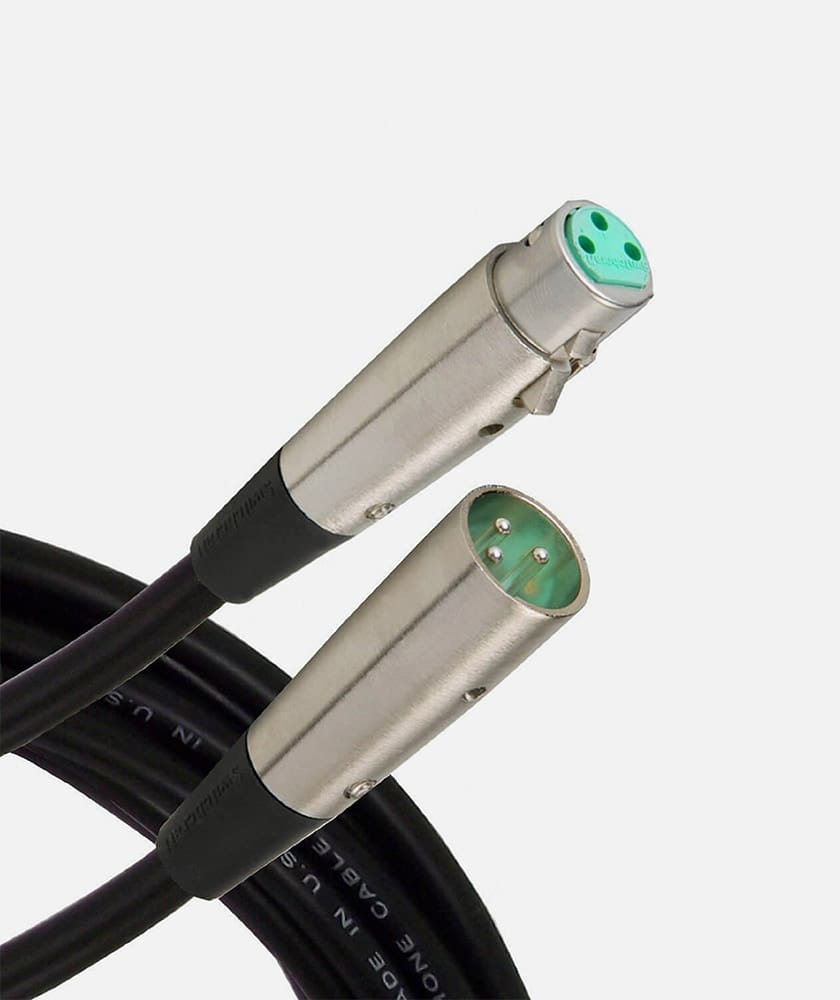

Core Advantage of Switchcraft Connector

High grade connectors only work well when the whole cable is built right. We pair real Switchcraft parts with the correct wire, shielding, and strain relief. The result is a cable that performs the way the connector was designed to.

Core Advantage of Switchcraft Connector

Original-level Compatibility & Stability

Each switchcraft cable assembly mates with Switchcraft jacks and panel mounts just like a factory cable. We follow the pin layouts, latch sizes, and body dimensions from the original datasheets. This keeps your plugs seated firmly with no wobble or loose contact. Your signal and power stay stable, even after years of plugging and unplugging.

Full-scale Customization Capability

No two systems are the same, so we don't force you into stock parts. You choose the length, wire gauge, jacket type, shield, and pinout. We can add overmolding, labels, color codes, and special breakouts. From one prototype to a large run, the build follows your exact drawing ideas or plan.

Factory Direct Supply & Efficient Deliverys:

You deal with the factory, not a chain of middlemen. That means fair pricing, clear answers, and faster lead times. Our team plans materials and production early to keep your order on schedule. Samples often ship within days, and volume orders follow a set plan. Each time you receive the best.

Strict Quality Control & Compliance Guarantee

Every cable goes through checks before it leaves our floor. We test continuity, shorts, pin order, and pull strength on each unit. Materials can be selected to meet RoHS and REACH requirements, and we can use UL-rated wire on request. You get test records with your shipment when your project calls for them.

Switchcraft Cable Assembly Specific Solutions

Different fields ask different things about a cable. A stage needs low noise, a factory needs toughness, and a hospital needs trust. We shape each custom switchcraft cable assembly to fit the real demands of the job it will do.

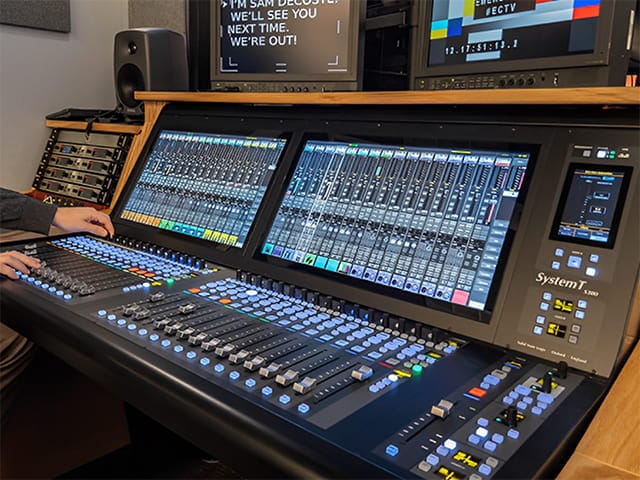

Pro Audio & Broadcast Solution

Pro Audio & Broadcast Solution

Sound and video work leaves no room for hum, crackle, or dropouts. Our Switchcraft audio cable assemblies are built for studios, live stages, and broadcast vans. We use low-noise twisted-pair cable with full foil or braided shields. This blocks outside interference, including lights, power lines, radio signals. For mic and line runs, a Switchcraft XLR cable assembly with Q-G latches keeps plugs from pulling loose mid-show. Tini-Q-G mini XLR cables suit wireless packs, lav mics, and compact camera rigs. We also build phone plugs, RCA, and patch cables for mixers and routing panels. Every run is tested for correct polarity, so your phase stays true. Soft, flexible jackets make coiling easy for touring crews. Color bands and printed labels help your team find the right line fast.

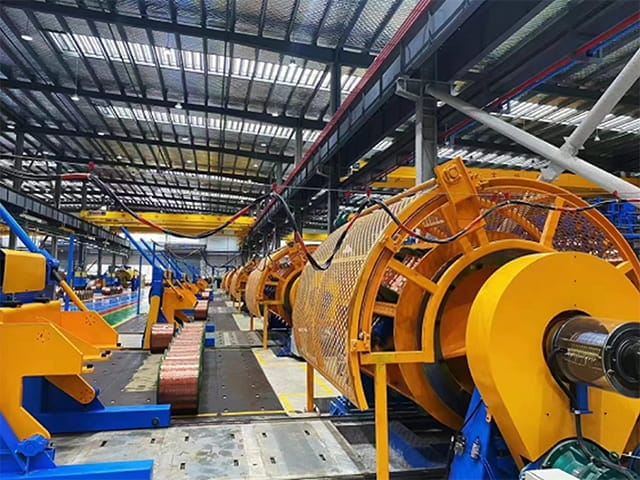

Industrial & Harsh Environment Solution

Industrial & Harsh Environment Solution

Factory floors, outdoor sites and moving machines damage cables. Dust, water, oil and constant shaking can break weak links in weeks. A Switchcraft circular connector cable assembly with EN3 or Conxall parts suits these environments. Sealed connectors block water and grit from contacts. We use Switchcraft overmolded design to fuse connector and cable into one solid piece. This molded body stops water seeping behind the plug and spreads bending stress, preventing wire breaks near joints. We select PUR or TPE jackets to resist oil, heat and wear. Shielded versions protect sensors and control signals from motor noise. Every cable gets pull-tested to withstand strain. Your machines run steadily, and your team spends less time on repairs.

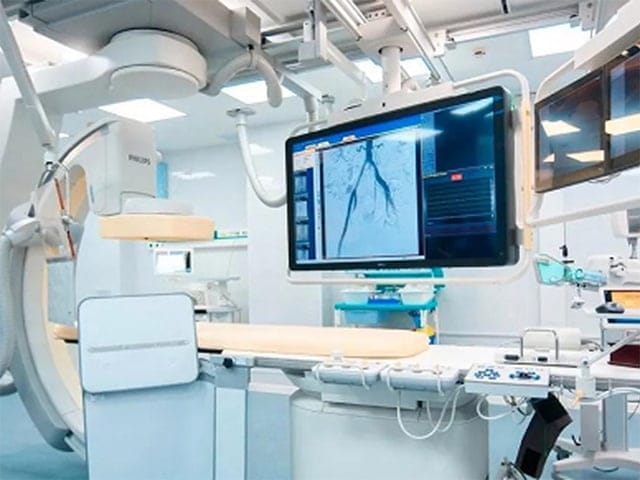

Medical, Security & Transportation Solution

Medical, Security & Transportation Solution

Some cables carry more than data. They carry patient care, public safety, passenger trust. For these fields, we build tight tolerances and clear records. Switchcraft DC power plug cable assemblies power monitors, cameras, portable devices with steady, secure fit. Mini circular and Tini-Q-G connectors save space in handheld and wearable gear. For security systems, we make shielded cables keeping video and control lines clean over long runs. In vehicles and rail, locking connectors resist daily travel shakes. Overmolded ends add strength where cables flex repeatedly. Materials can be chosen for low smoke, flame resistance, easy cleaning per your rules. Each unit is batch traced, so any question checks quickly. You get a cable you can count on when failure is not an option for your project.

Switchcraft Cable Assembly Process

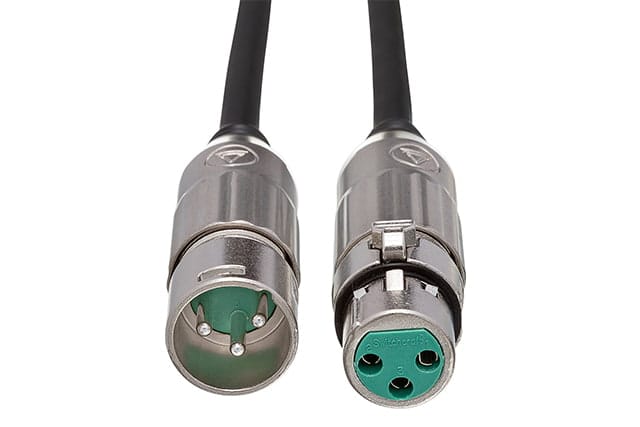

Demand Docking & Solution Customization

Demand Docking & Solution Customization

It all starts with a clear talk about your needs. Share your drawing, sample, photo, or even a rough idea. Our engineers review the connector type, pin count, current, cable length, and working space. If something in the design could cause trouble, we point it out early. We then suggest the best cable, shield, and strain relief for the job. You receive a clear drawing and a quote to approve. Nothing moves forward until you are happy with the plan.

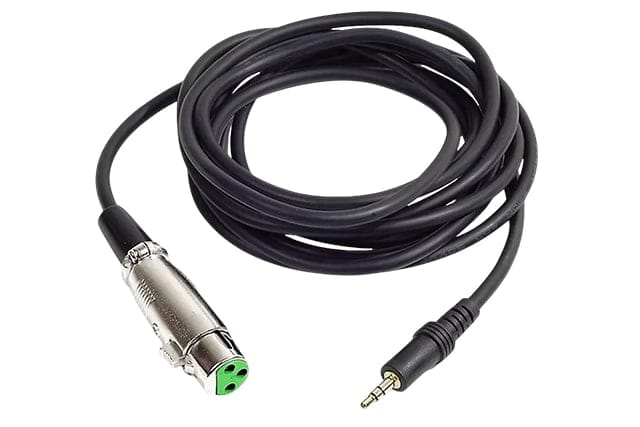

Sample Production & Precision Verification

Sample Production & Precision Verification

Next, we build a small batch of samples for you to test. Each sample follows the approved drawing down to the last pin. We check length, pinout, crimp height, and molding fit with care. Electrical tests confirm there are no opens, shorts, or wrong connections. You can test the samples in your own system and send feedback. If a change is needed, we adjust and rebuild quickly. Mass production begins only after you sign off and then we start building.

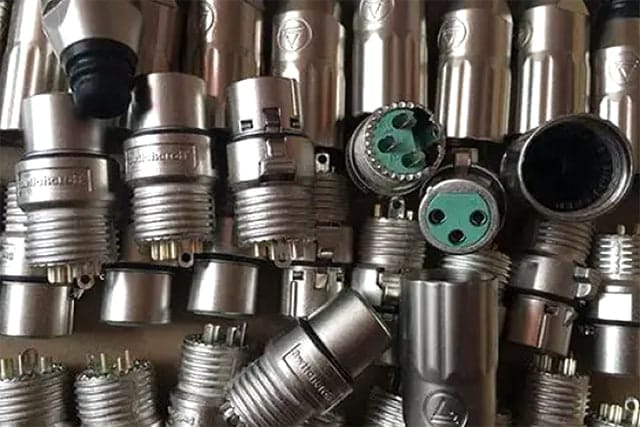

Mass Production & Strict Quality Inspection

Mass Production & Strict Quality Inspection

Once approved, your order moves to our production line. Skilled workers and set tooling ensure every cable matches the sample. Crimp tools are checked often, so every contact holds tight. We inspect cables at key steps, not just at the end. Every finished unit gets a full electrical test before packing. Random samples also go through pull and visual checks. Faulty parts are caught and removed long before they reach you. We ensure each process delivers the best product.

Fast Delivery & After-sales Support

Fast Delivery & After-sales Support

Finished switchcraft cable assembly is packed to protect them in transit. We can coil, bag, and label each unit as your line needs. Shipping options include express, air, and sea freight to suit your timeline. You'll get tracking details as soon as the order leaves. After delivery, our team stays on hand for any questions. If an issue comes up, we look into it quickly and provide a clear fix. We also keep your build records for simple repeat orders.

Get a Quick Quote

Industries and Applications

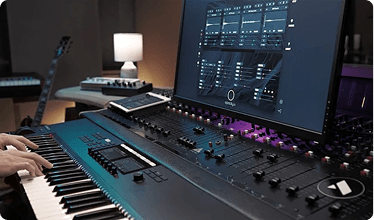

Pro audio and live sound

Pro audio and live sound

Mic lines, speaker links, and stage snakes need clean, quiet signals. Locking XLR and mini XLR ends keep cables secure during busy shows. Durable jackets survive being coiled, stepped on, and packed night after night.

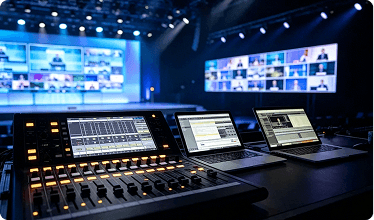

Broadcast and video production

Broadcast and video production

TV studios and outside broadcast trucks move signals all day. Shielded switchcraft cable assembly stops noise from lights and power gear. Clear labels help crews patch the right source in seconds.

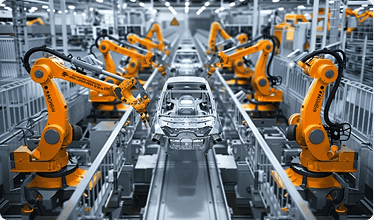

Industrial automation

Industrial automation

Robots, sensors, and control boxes rely on steady links. Sealed circular connectors block dust, oil, and water. Overmolded ends handle constant motion without cracking.

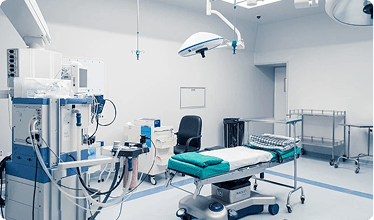

Medical devices

Medical devices

Patient monitors and portable tools need safe, compact cables. Small locking connectors fit tight device housings. Easy-clean jackets support hygiene needs in clinics.

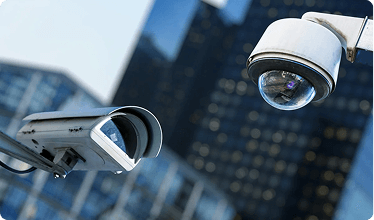

Security and surveillance

Security and surveillance

Cameras and access systems depend on stable power and data. DC power plug cables keep devices running around the clock. Weather-resistant builds work well on outdoor mounts.

Transportation and rail

Transportation and rail

Buses, trains, and special vehicles face heavy vibration. Latching connectors stay locked on rough roads and tracks. Tough jackets resist heat, cold, and wear.

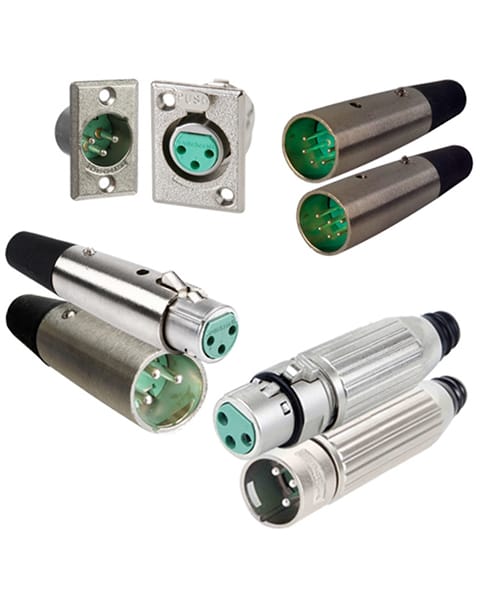

Keying and Polarization to Prevent Mismating

Built-in key shapes

Switchcraft audio cable assembly connectors use keys and slots that allow only one correct fit. A plug simply won't go into the wrong jack. This protects your gear from damage caused by a bad connection.

Different pin counts on nearby lines

When several cables sit close together, we can give each one a different pin count. A 4-pin plug can't enter a 5-pin socket by mistake. This is one of the easiest ways to stop mix-ups on busy panels.

Male and female gender choices

We can swap plug and socket genders between power and signal lines. That way, a power cable never mates with a data port. It is a simple step that adds strong protection.

Color codes that match the key

Colored boots, bands, or jackets add a quick visual check. Workers can see the right match before they plug in. This speeds up setup and cuts human error.

Clear polarity on DC power plugs

Center-positive or center-negative wiring is set to your device and printed on the label. Wrong polarity can harm electronics in an instant. We test every DC cable to confirm it is wired correctly.

Keying and Polarization to Prevent Mismating
Current Rating Per Contact and Derating

Current Rating Per Contact and Derating

The current rating depends on the connector series, contact size, and plating.

Full-size XLR-style contacts handle more current than mini XLR contacts.

DC power plugs are usually rated for a few amps at low voltage.

Always check the exact rating on the Switchcraft datasheet for your part.

The wire gauge must match or exceed the load the contact will carry.

When many contacts carry current simultaneously, each must be derated.

Higher room temperature lowers the safe current per contact.

Tight bundles trap heat, so the current should be reduced further.

Long cable runs cause a voltage drop, which may require a thicker wire.

We run the numbers for you and suggest a safe margin for your design.

Custom Lengths, Colors and Cable Labeling

Exact length to your needs

We cut cables to the length you request, from short jumpers to long runs. Tight length control keeps your layout neat and avoids extra slack. Tolerances are set on your drawing and checked on every unit.

Jacket color choices

Black, gray, red, blue, green, and many other colors are available. Colors help separate power, audio, and control lines at a glance. They can also match your brand or product style.

Printed labels and heat-shrink markers

We add printed sleeves with part numbers, pin info, or line names. Labels stay readable even after long use. This makes installation, repair, and stock control much easier.

Custom molded ends and logos

A Switchcraft custom molded cable assembly can carry your logo or part number in the mold itself. The mark stays in place for the life of the cable. It gives your product a clean, finished look.

Special packing and bundling

Cables can be coiled, tied, bagged, and barcoded to suit your switchcraft cable assembly line. Kits can be grouped by project or build stage. Your team spends less time sorting and more time building.

Get a Quick Quote

Customer Reviews

Customer Reviews
★★★★★

We ordered XLR cables for our touring rig. Each one worked on the first plug-in. The latches hold tight, and the sound is dead quiet.

★★★★★

The team caught a pinout error in our drawing before we paid for samples. That saved us weeks. The final switchcraft cable assembly was spot on.

★★★★★

Our DC power cables come labeled and bagged just the way our line needs them. It has made our assembly process much faster.

★★★★★

We use their mini XLR cables in our wireless packs. They are small, strong and very well finished. Reorders are always simple.

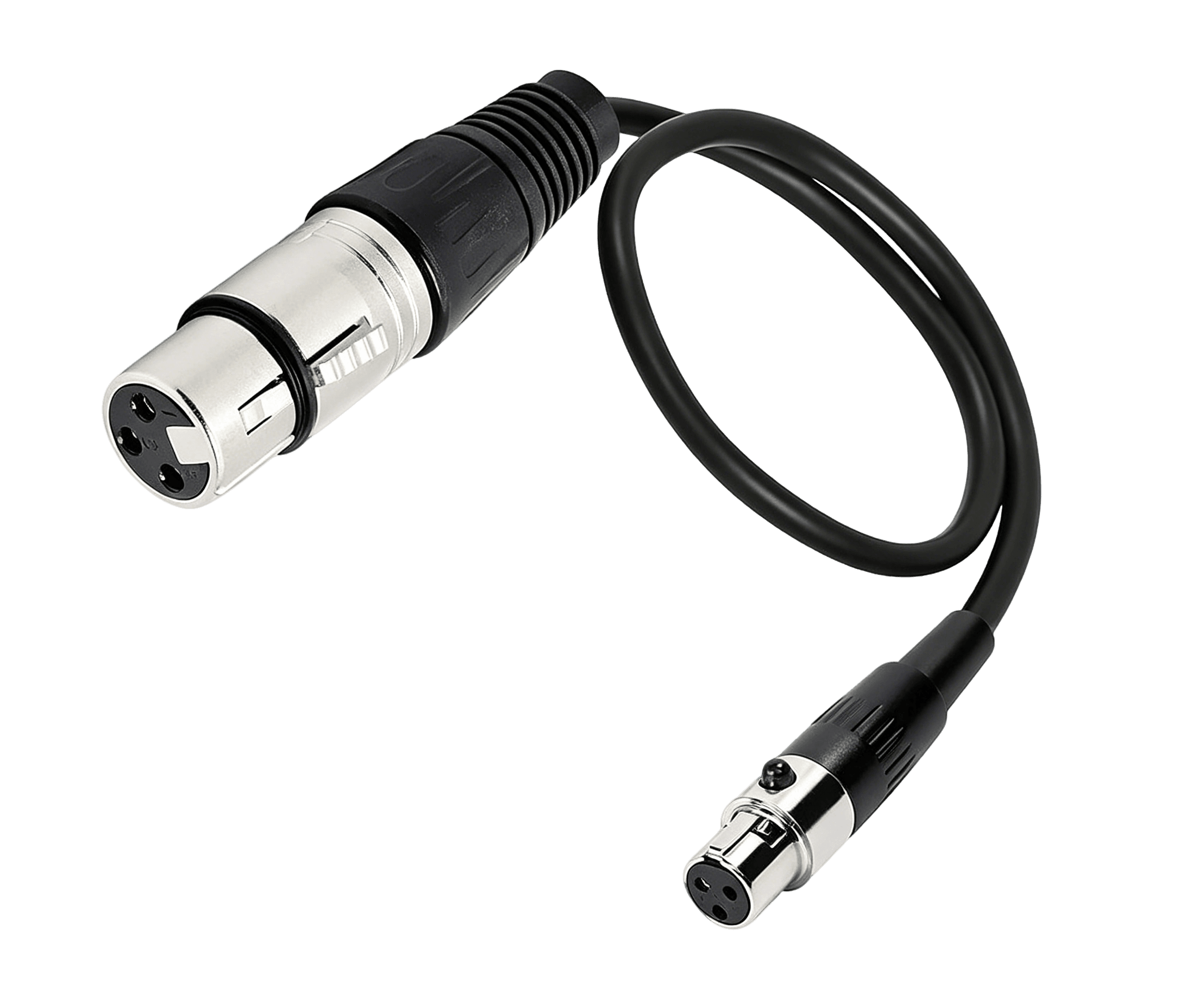

Built to Your Spec, Tested Before It Ships

QL-Custom Technology Ltd. makes custom cable assemblies and wire harnesses, and we treat every order as a real engineering job. Our team studies your connector, load, and workspace before we suggest a build. We use Switchcraft parts the right way for switchcraft cable assembly, with matched wire, strong crimps, and solid strain relief. From a single Switchcraft XLR cable assembly to large runs of Switchcraft overmolded cable assembly parts, we maintain the same quality across every unit. Buying direct from our factory gives you fair pricing, quick samples, and clear lead times. Every cable is fully tested before it ships, and records are kept for easy reorders. If you send us your drawing or sample, our engineers will reply with a clear plan and quote.
